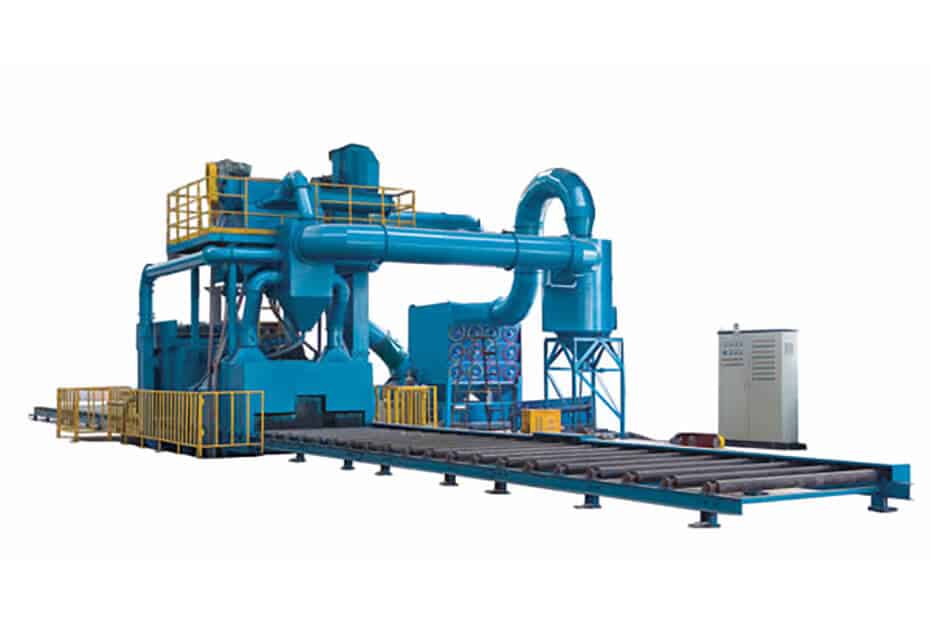

RC-Line Shot Blasting Machines

The RC-line of roller conveyor machines is available in three different versions. The S (Standard) and H (Heavy Duty) versions are shot blasting machines designed to process plates, sections, angles, pipes, and similar for the shipping industry, steel structure companies, steel stock holders, and machine builders.

The S and H version machines can be used with a pre-heater, an automatic painting unit, and a dryer.

The C (Construction) machine is specially designed for post-fab structural components to be used in various industries, including shipping, automobiles, structural steel, motorcycles, bridges, machines, and more.

Download our Shot Blasting Machines brochure here, or browse our full range of product brochures here.

Shot Blasting Machines RC Line 03

Type

S/H/C 15.410

S/H/C 25.261

S/H/C 33.801

S/H/C 45.1010

Effective Cleaning Width (mm)

1500

2500

3300

4500

Room feed-in-size (mm)

1550x600

2600x600

3400x600

4600x600

Length of workpiece (m)

1200-12000

3000-12000

2400-12000

4500-18000

Speed of wheel conveyor

(steepless speed variation in m/min)

0.5-4

0.5-4

0.5-4

0.5-4

Thickness of steel sheet (mm)

1.5-60

3-60

3-110

4.5-100

Beam size reference (mm)

1000x300

1300x300

2x800x300

2x1000x300

Quantity of shot blasting (kg/min)

4x250

6x250

6(8)x360

8x360

First enclosed quantity (kg)

4000

4500

8000

11000

Roll brush adjusting height (mm)

600

600

600

600

Filter capacity(m3/h)

8000

12000

16000

24000

Exterior size (mm)

15200 x 5370 x 6797

31200 x 8070 x 7500

44042 x 6385 x 7758

45000 x 7830 x 11117

Power (except for dust cleaning)(kw)

113.5

204.8

224.55

293.6
