MR-Line Shot Blasting Machines

The MR38 and MR48 are multiple-step rotating point shot blasting machines featuring an overhead rail and continuous operation.

These machines can be used to clean rust and sand from casting and work pieces for vehicles, such as bolsters and side frames. They are also great for other types of steel structure and mechanical parts.

Multiple-step rotating point machines can be used in wet and powder paint lines. They also boast high efficiency and low-cost maintenance.

Download our Shot Blasting Machines brochure here, or browse our full range of product brochures here.

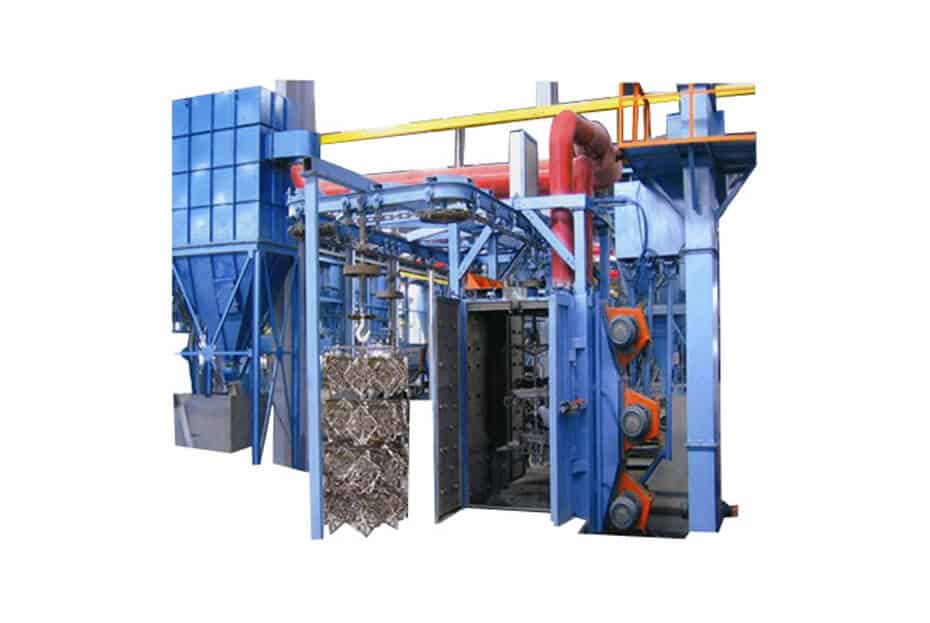

Shot Blasting Machines Q58

Type

MR383/MR483

MR385/MR485

MR4810

Cleaning workpiece size (dia in mm)

800 x 1200

Number of workpiece position

2

2

2

Quantity of impeller head

4

4

6

Impeller head volume (kg/min)

4 x 250

4 x 250

6 x 250

Impeller head power (kw)

4 x 15

4 x 15

6 x 15

Max. hanging weight (kg)

300

500

1000

Productivity hanger (/h)

30 – 60

30 – 60

40 - 60

Cleaning workpiece size (mm)

7680 x 2000 x 2900

7680 x 2000 x 2900

7680 x 2000 x 3800

Total Air rate volume (m3/h)

17000

19000

19000

Power (except for dust cleaning) (kw)

73.15

73.15

114.72


Type

MR583

MR585

MR5810

MR588

Cleaning workpiece size (dia in mm)

800 x 1500

800 x 1200

1300 x 2800

550 x 2200

Number of workpiece position

2

3

2

2

Quantity of impeller head

4

6

6

4

Impeller head volume (kg/min)

4 x 250

6 x 360

6 x 330

4 x 480

Impeller head power (kw)

4 x 15

6 x 22

6 x 22

4 x 22

Max. hanging weight (kg)

300

500

1000

800

Productivity hanger (/h)

40

55

50

30

Cleaning workpiece size (mm)

3062 x 1800 x 2800

8500 x 1800 x 3885

8500 x 2300 x 4800

6800 x 2600 x 3325

Total Air rate volume (m3/h)

16000

18000

18000

17200

Power (except for dust cleaning) (kw)

74.5

186.85

186.85

121.05
