TP-Line Shot Blasting Machines

The TP-line of turning plate shot blasting machines is designed to blast small- to medium-sized work pieces on a rotating plate. The units can be used to blast various items, including forged and cast parts, as well as car wheels. They provide a bright and profiled surface, and are available in Ferro and non-Ferro performance.

Download our Shot Blasting Machines brochure here, or browse our full range of product brochures here.

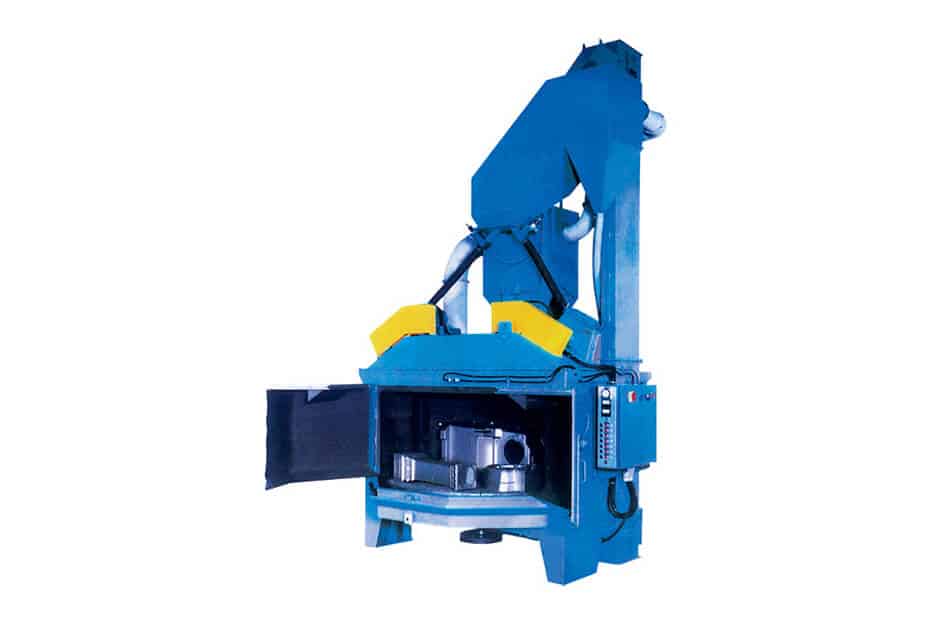

Rotary Table Shot Blast Machine
TypeTP3512TPF3512TPF3525F
Dimension (diameter)
of cleaning chamber (mm)
1350 x 5601350 x 8602854 x 560
Cleaning workpiece size (mm)600 x 250 x 250600 x 250 x 500600 x 500 x 250
Turntable car Loading weight (kg)4004001000
Turntable car Diameter (mm)120012002500
Wheelblast equipment Blasting capacity (kg)2002 x 1202 x 250
Wheelblast equipment Power (kw)112 x 7.52 x 15
Lifting capacity of elevator (t/h)151530
Separation quantity of separator (t/h)151530
First loading capacity (kg)4004001500
Ventilation volume (m3/h)280028005200
External dimension (mm)1500 x 3450 x 37801900 x 1900 x 41654260 x 3647 x 5366
Power (except for dust cleaning) (kw)24.524.535.2
