TB-Line Shot Blasting Machines

TB15GN, TB(R)32 and TB28GN tumble belt shot blasting machines can be used to remove sand and rust from cast, forged, and welded parts. They can also be used for aluminium and other non-ferrous components. This series is especially effective for hard-to-clean parts, non-fragile parts, and non-core castings.

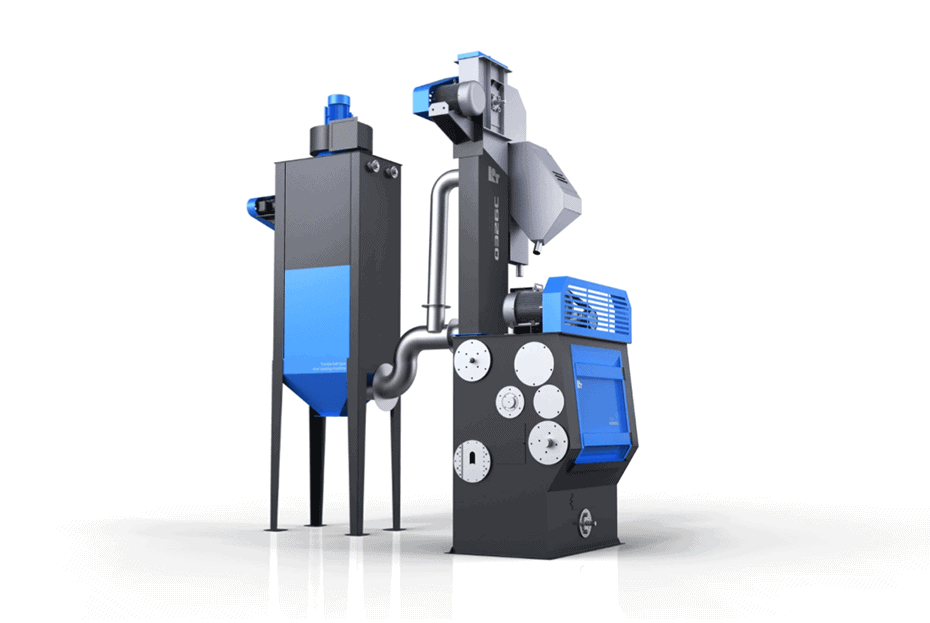

Shot Blasting Machines AB32-9
TypeTB326TB3210TBR3210
Productivity (T/h)0.6 – 1.23 – 51.5 – 2.5
Loading weight (kg)200800600
Max. weight of one piece (kg)10
1530
Diameter of roller (mm)65010001000
Available capacity (m3)0.150.40.3
Pill impelling volume (kg/min)100250250
Dedusting air volume (m3/h)220060005000
Power dissipation (kw)12.632.624.3
Appearance dimension (mm)3681 x 1650 x 58003644 x 2926 x 58563972 x 2600 x 4768
Total weight (kg)234058437400
TypeTB15GNTB28GN
Size of roller (mm)1090 x 12451245 x 1778
Diameter of roller (kg)10921250
Working cubage (m3)0.430.79
Max. weight of one piece (kg)227363
Max. size of one piece (mm)10001000
Loading weight (kg)8003500
Pill impelling volume (kg/min)480340 x 2
Impeller head power (kw)2230
