RS-Line Shot Blasting Machines

Round springs pose a unique blasting challenge and achieving the desired result requires precise positioning of the blast wheels. The RS265, RS2615, and RSES1422 round spring shot blasting machines have been specifically designed to meet this challenge, achieving the ultimate round spring blast.

Download our Shot Blasting Machines brochure here, or browse our full range of product brochures here.

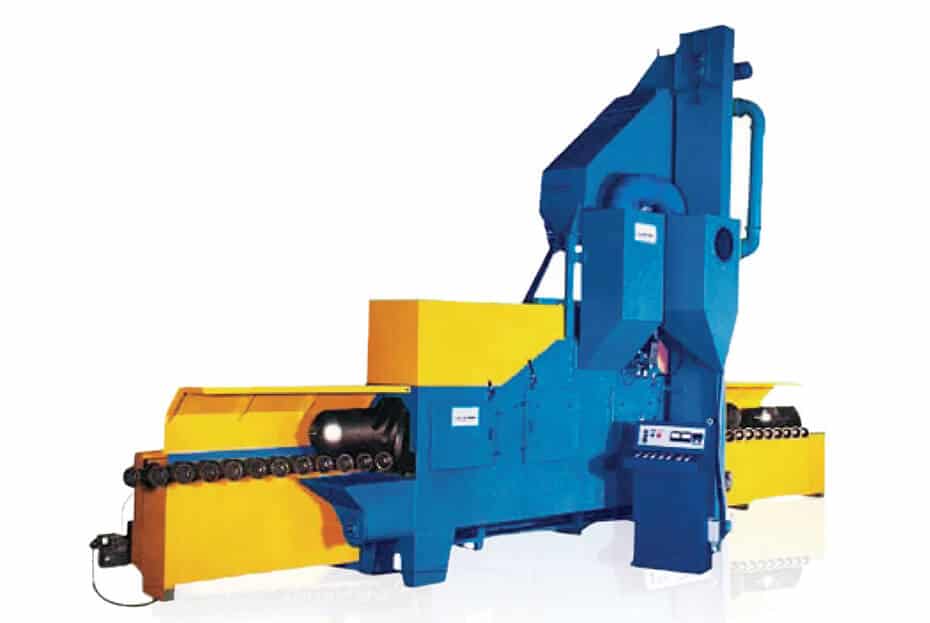

Shot Blasting Machines QG-2

Type

RS265

RS2615

RS1422

Maximum size of cleaning work

Gear wheel: ø1500×1700 Inner gear: ø400×2000 Height: 200 – 500

Gear wheel: ø3000×1500 Inner gear: ø 400×2500 Height: 200 – 500

Diameter: 50 – 300 Length: ≤ 700

Diameter of revolving table (mm)

1500

3000

-

Diameter of small movement revolving table (mm)

500

1000

-

Carrying capacity of revolving table (kg)

5000

15000

-

Power of shot blasting (kw)

3 x 18.5

3 x 18.5

30

Mobile impeller head power (kw)

1 x 18.5

1 x 18.5

-

Quantity of shot blasting (kg/min)

4 x 280

4 x 280

420

Type of dust catcher (m3/h)

HR4-16

HR4-32

JZC40

Total air rate volume (m3/h)

10000

22000

5940

Power (except for dust cleaning) (kw)

107.15

119.3

40.05

External dimension (mm)

9350 x 3750 x 8790

12000 x 5250 x 8750

8230 x 762 x 1752
